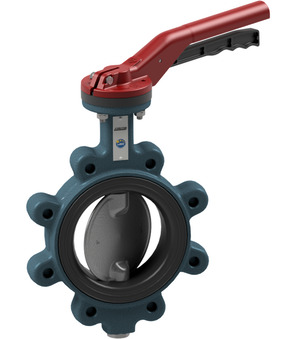

Butterfly valve with hand lever BULC-200-DSE-L

Butterfly valve with hand lever BULC-200-DSE-L

Butterfly valve with hand lever Series BULG-L, BULC-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0-10bar; Flange PN10

Intrastat No.: 84818085
Country of origin: Italy
Weight: 28.0 Kg
Short Itemnumber:BULC200DSEL
https://www.stasto.eu/web/image/product.template/88032/image_1920?unique=b9bbba7

Butterfly valve with hand lever Series BULG-L, BULC-L; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0-10bar; Flange PN10

634,20 € 634.2 EUR 634,20 €

price on request

  • DN
  • Length
  • Flange
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
DN 200 mm
Length 60 mm
Flange PN10
pressure
Pressure range 0...10 bar
