STASTO Allgemeine Preisliste (EUR)
Other materiales - A04 Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Other materiales - A04
  5. Other materiales - A04
  6. BULC-200-DPV-G-3C

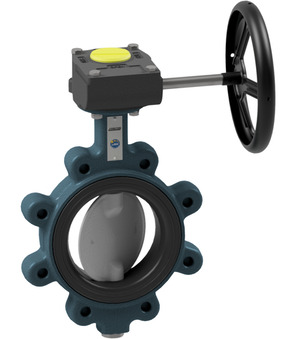

BULC-200-DPV-G-3C

BULC-200-DPV-G-3C

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 18.728 Kg
Short Itemnumber: BULC200DPVG3C
https://www.stasto.eu/web/image/product.template/145779/image_1920?unique=d9024cc

butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner FKM; nominal flange pressure PN10; medium temperature -10...+200°C; pressure range 0...10bar; DN 200mm; length 60mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

1.155,80 € 1155.8 EUR 1.155,80 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULC-200-DPV-B-3C x 1.0
    BULC-200-DPV-B-3C
    Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+200°C; Pressure range 0...10bar; DN 200mm; Length 60mm; Disc Zinc plated ductile iron EN-GJS-400-15; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
    Add to Cart
    GB02-10/17-01
    GB02-10/17-01 x 1.0
    GB02-10/17-01
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 500Nm; Flange ISO5211 F10; Female square 17mm
    Add to Cart
