Butterfly valve with pneumatic actuator BULB-300-DSC-D32

Price.

2.116,20 €
Butterfly valve with pneumatic actuator Series BULI-D, BULB-D Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Butterfly valve with pneumatic actuator Series BULI-D, BULB-D
  6. BULB-300-DSC-D32

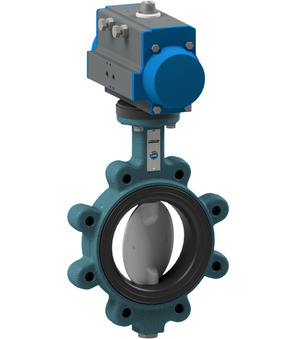

Butterfly valve with pneumatic actuator BULB-300-DSC-D32
Absperrklappe mit Druckluftdrehantrieb BULB-250-DSC-D32-ABS54-C001-03-C002-31-LT-2-01-EB0X02 (Kopie)
Absperrklappe mit Druckluftdrehantrieb BULB-250-DSC-D32-ABS54-C001-03-C002-31-LT-2-01-EB0X02 (Kopie)
2.514,59 €
2.514,59 €
Absperrklappe mit Druckluftdrehantrieb BULB-300-DSC-D32 (Kopie)
Absperrklappe mit Druckluftdrehantrieb BULB-300-DSC-D32 (Kopie)
2.297,79 €
2.297,79 €

Butterfly valve with pneumatic actuator BULB-300-DSC-D32

Butterfly valve with pneumatic actuator Series BULI-D, BULB-D; Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 300mm; Length 78mm; Flange PN10; Actuator PAD125

Intrastat No.: 84818085
Country of origin: Italy
Weight: 52.09 Kg
Short Itemnumber:BULB300DSCD32
https://www.stasto.eu/web/image/product.template/136598/image_1920?unique=9e84f23

butterfly valve with pneumatic actuator series BULI-D, BULB-D; lug type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner carboxylated NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...6bar; DN 300mm; length 78mm; flange PN10; actuator PAD125

2.116,20 € 2116.2 EUR 2.116,20 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us
dimension
DN 300 mm
Length 78 mm
Flange PN10
characteristics
Actuator PAD125

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Declarations of Conformity
1
Declaration of conformity_Butterfly valve with pneumatic actuator Series BULI-D, BULB-D_EN.pdf
Download

ZIP
Prohlášení o shodě
1
Prohlášení o shodě_uzavírací klapka s otočným pneumatickým pohonem série BULI-D, BULB-D_CS.pdf
Download

ZIP
Konformitätserklärungen
1
Konformitätserklärung_Absperrklappe mit Druckluftdrehantrieb Serie BULI-D, BULB-D_DE.pdf
Download

ZIP
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BULI-D, BULB-D_HU.pdf
Download

ZIP
Deklaracje zgodności
1
Deklaracja zgodności_przepustnica z napędem pneumatycznym Seria BULI-D, BULB-D_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BULI-D, BULB-D_SL.pdf
Download

ZIP
Declarations of Conformity
1
Deklaracija o usklađenosti_leptir ventil sa pneumatskim aktuatorom serije BULI-D, BULB-D_SRLATIN.pdf
Download
BULB-300-DSC-B x 1.0
BULB-300-DSC-B
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 300mm; Length 78mm
Add to Cart
Pneumatic actuator PAD125
PAD125 x 1.0
Pneumatic actuator PAD125
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm
Add to Cart
