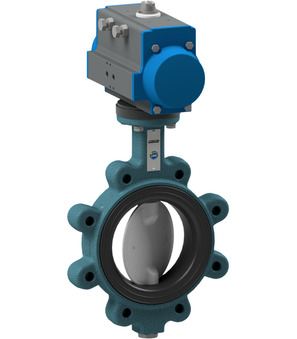

Butterfly valve with pneumatic actuator BULB-250-DSV-D32

Butterfly valve with pneumatic actuator BULB-250-DSV-D32

butterfly valve with pneumatic actuator series BULI-D, BULB-D; lug type; length according to EN558−1R20; body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm; flange PN10; actuator PAD115

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULB250DSVD32
https://www.stasto.eu/web/image/product.template/225388/image_1920?unique=b9bbba7

butterfly valve with pneumatic actuator series BULI-D, BULB-D; lug type; length according to EN558−1R20; body EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm; flange PN10; actuator PAD115

2.179,00 € 2179.0 EUR 2.179,00 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 250 mm
Length 68 mm
Flange PN10
characteristics
Actuator PAD115

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Declarations of Conformity
1
Declaration of conformity_Butterfly valve with pneumatic actuator Series BULI-D, BULB-D_EN.pdf
Download

ZIP
Prohlášení o shodě
1
Prohlášení o shodě_uzavírací klapka s otočným pneumatickým pohonem série BULI-D, BULB-D_CS.pdf
Download

ZIP
Konformitätserklärungen
1
Konformitätserklärung_Absperrklappe mit Druckluftdrehantrieb Serie BULI-D, BULB-D_DE.pdf
Download

ZIP
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett pillangószelep sorozat BULI-D, BULB-D_HU.pdf
Download

ZIP
Deklaracje zgodności
1
Deklaracja zgodności_przepustnica z napędem pneumatycznym Seria BULI-D, BULB-D_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Zaporna loputa s pnevmatskim rotacijskim pogonom serija BULI-D, BULB-D_SL.pdf
Download

ZIP
Declarations of Conformity
1
Deklaracija o usklađenosti_leptir ventil sa pneumatskim aktuatorom serije BULI-D, BULB-D_SRLATIN.pdf
Download
BULB-250-DSV-B x 1.0
BULB-250-DSV-B
butterfly valve with bare shaft; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm
Add to Cart
Pneumatic actuator PAD115
PAD115 x 1.0
Pneumatic actuator PAD115
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm
Add to Cart
