BULA-300-DSE-G-3C

BULA-300-DSE-G-3C

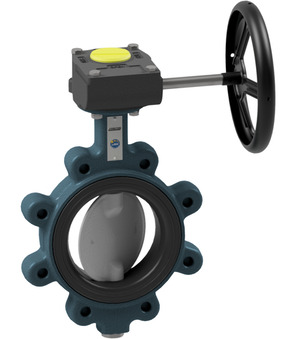

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 28.428 Kg
Short Itemnumber: BULA300DSEG3C
https://www.stasto.eu/web/image/product.template/156149/image_1920?unique=d9024cc

butterfly valve with manual gear box; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN16; medium temperature -10...+130°C; pressure range 0...16bar; DN 300mm; length 78mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

1.673,60 € 1673.6 EUR 1.673,60 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BULA-300-DSE-B-3C x 1.0
    BULA-300-DSE-B-3C
    Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 300mm; Length 78mm; Pressure range 0...16bar; Flange PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
    Add to Cart
    GB02-10/22-02
    GB02-10/22-02 x 1.0
    GB02-10/22-02
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
