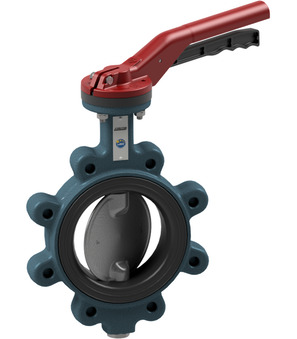

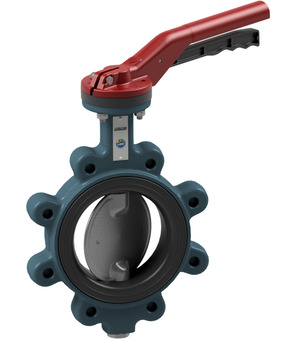

Butterfly valve with hand lever BULA-300-DPE-L-A

butterfly valve with hand lever series BULA-DPE-L; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0...16bar; nominal flange pressure PN16

Absperrklappe mit Handhebel Serie BULG-L, BULC-L
Intrastat No.: 84818085
Country of origin:
Italy Made in Europe
Short Itemnumber:
BULA300DPELA

Scope of delivery

butterfly valve with hand lever made of aluminum, 10 positions
https://www.stasto.eu/web/image/product.template/231588/image_1920?unique=37ad42f

butterfly valve with hand lever series BULA-DPE-L; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0...16bar; nominal flange pressure PN16

924,40 € 924.4 EUR 924,40 €

Not Available For Sale

excl. tax
  • DN
  • Length
  • Flange
  • Design
  • Pressure range
  • Brand

This combination does not exist.

Availability:
See availability

Technical specifications

Pressure range 0...16 bar
DN 300 mm
Length 78 mm
Flange PN16
Pressure range 0...16 bar
DN 300 mm
Length 78 mm
Flange PN16
Design ATEX
Brand STASTO

BULA-300-DPE-L-A

Documents

3 Documents 18 Languages

Czech / Čeština

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Danish / Dansk

Data Sheets

1

Declarations of Conformity

1
German / Deutsch

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Greek / Ελληνικά
English

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Spanish / Español
Finnish / Suomi

Data Sheets

1

Declarations of Conformity

1
French / Français

Data Sheets

1

Declarations of Conformity

1
Croatian / hrvatski jezik

Data Sheets

1

Declarations of Conformity

1
Hungarian / Magyar

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Italian / Italiano
Norwegian Bokmål / Norsk bokmål

Data Sheets

1

Declarations of Conformity

1
Dutch / Nederlands

Data Sheets

1

Declarations of Conformity

1
Polish / Język polski

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Romanian / română

Data Sheets

1

Declarations of Conformity

1
Slovenian / slovenščina

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Serbian (Latin) / srpski

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1
Swedish / Svenska

Data Sheets

1

Declarations of Conformity

1
BULA-300-DPE-B-A x 1.0 Pcs
Butterfly valve with bare shaft BULA-300-DPE-B-A
butterfly valve with bare shaft series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; lug type; ATEX - II 2GD Ex h X EPT; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ductile iron EN-GJS-400-15 zinc plated; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 300mm; length 78mm; pressure range 0...16bar; nominal flange pressure PN16
HLBU-250300-A x 1.0 Pcs
HLBU-250300-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 250;300mm
