BULA-250-DSE-G-3C

Name: BULA-250-DSE-G-3C
Brand: STASTO
SKU: BULA-250-DSE-G-3C
Price: 1296.7 EUR
Availability: InStock

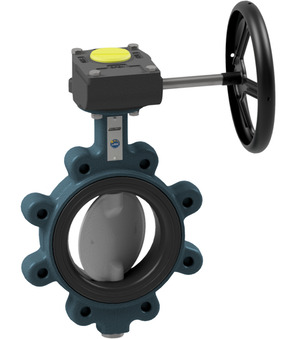

Butterfly valve with manual gear box Series BULA-DSE-G-3C; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 250mm; Length 68mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 36.278 Kg
Short Itemnumber: BULA250DSEG3C

butterfly valve with manual gear box series BULA-DSE-G-3C; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN16; medium temperature -10...+130°C; pressure range 0...16bar; DN 250mm; length 68mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

1.296,70 € 1296.7 EUR 1.296,70 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULA-250-DSE-B-3C x 1.0

Butterfly valve with bare shaft BULA-250-DSE-B-3C

Butterfly valve with bare shaft Series BUL-B-3C; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 250mm; Length 68mm; Pressure range 0...16bar; Flange PN16
