STASTO Allgemeine Preisliste (EUR)
BULA-200-DSE-L-3C

BULA-200-DSE-L-3C

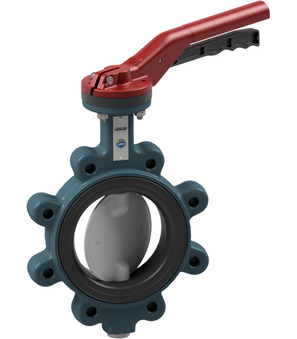

Butterfly valve with hand lever Series BULA-DSE-L-3C; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0-16bar; Nominal flange pressure PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 20.9 Kg
Short Itemnumber: BULA200DSEL3C
https://www.stasto.eu/web/image/product.template/156147/image_1920?unique=fcc32fd

butterfly valve with hand lever series BULA-DSE-L-3C; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 200mm; length 60mm; pressure range 0-16bar; nominal flange pressure PN16; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

634,20 € 634.2 EUR 634,20 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-16bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Pressure range 0-16bar
Brand STASTO

BULA-200-DSE-L-3C

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BULA-200-DSE-B-3C x 1.0 Pcs
Butterfly valve with bare shaft BULA-200-DSE-B-3C
Butterfly valve with bare shaft Series BUL-B-3C; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Nominal flange pressure PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
HLBU-200-A
HLBU-200-A x 1.0 Pcs
HLBU-200-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG, BULC, BULA And BULY; DN 200mm
