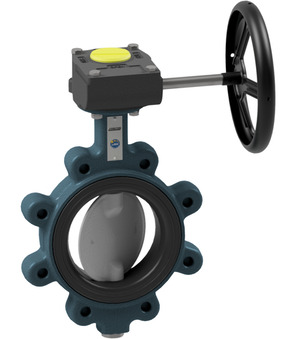

BULA-200-DSD-G-3C

Name: BULA-200-DSD-G-3C
Brand: STASTO
SKU: BULA-200-DSD-G-3C
Price: 1003.8 EUR
Availability: InStock

Butterfly valve with manual gear box; Lug type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Nominal flange pressure PN16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 31.728 Kg
Short Itemnumber: BULA200DSDG3C

butterfly valve with manual gear box; lug type; DVGW-gas-approved; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; medium temperature -10...+60°C; DN 200mm; length 60mm; pressure range 0…16bar; nominal flange pressure PN16bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

1.003,80 € 1003.8 EUR 1.003,80 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BULA-200-DSD-B-3C x 1.0

BULA-200-DSD-B-3C

Butterfly valve with bare shaft; Lug type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Flange PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
