Butterfly valve with manual gear box Series BUL1-G, BULA-G Store

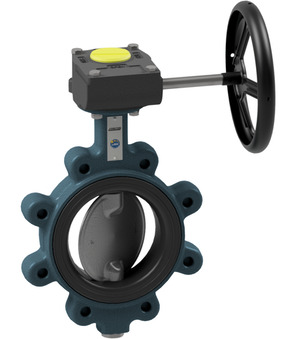

Butterfly valve with manual gear box BUL1-450-DSE-G

Name: Butterfly valve with manual gear box BUL1-450-DSE-G
Brand: STASTO
SKU: BUL1-450-DSE-G
Price: 4932.2 EUR
Availability: InStock

Butterfly valve with manual gear box Series BUL1-G, BULA-G; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 450mm; Length 114mm; Pressure range 0…6bar; Nominal flange pressure PN6bar

Intrastat No.: 84818085
Country of origin: Italy
Weight: 184.044 Kg
Short Itemnumber: BUL1450DSEG

butterfly valve with manual gear box series BUL1-G, BULA-G; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 450mm; length 114mm; pressure range 0…6bar; nominal flange pressure PN6bar

4.932,20 € 4932.2 EUR 4.932,20 €

DN
- 450 mm
Length
- 114 mm
Flange
- PN6
Pressure range
- 0...6 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	450 mm
Length	114 mm
Flange	PN6
pressure
Pressure range	0...6 bar

BUL1-450-DSE-B x 1.0

Butterfly valve with bare shaft BUL1-450-DSE-B

Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 450mm; Length 114mm; Pressure range 0…6bar; Nominal flange pressure PN6

Add to Cart
