BUL1-250-DSE-D32

Name: BUL1-250-DSE-D32
Brand: STASTO
SKU: BUL1-250-DSE-D32
Price: 1504.2 EUR
Availability: InStock

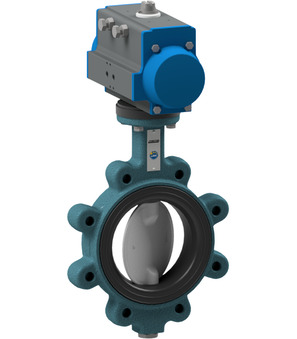

Butterfly valve with pneumatic actuator; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Flange PN6; Actuator PAD115

Intrastat No.: 84818085
Country of origin: Italy
Weight: 36.39 Kg
Short Itemnumber: BUL1250DSED32

butterfly valve with pneumatic actuator; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...6bar; DN 250mm; length 68mm; flange PN6; actuator PAD115

1.504,20 € 1504.2 EUR 1.504,20 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BUL1-250-DSE-B x 1.0

Butterfly valve with bare shaft BUL1-250-DSE-B

Butterfly valve with bare shaft Series BUL1-DSE-B, BULA-DSE-B, BULG-DSE-B, BULC-DSE-B, BULY-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Pressure range 0…6bar; Nominal flange pressure PN6

Add to Cart

PAD115 x 1.0

Pneumatic actuator PAD115

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm

Add to Cart

APKTGB0011 x 1.0
