BDH2-150-T-001

Name: BDH2-150-T-001
SKU: BDH2-150-T-001

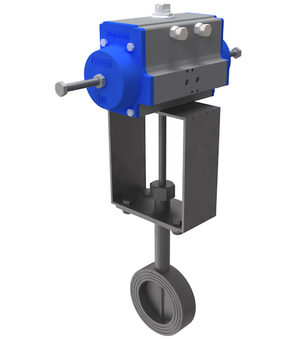

Ring-butterfly damper with pneumatic actuator, Single acting, DN150, PN6/10/16; Body, Disc And Shaft 1.4841; Packing gland Adjustable graphite sealing cord; Mounting bracket Zinc plated steel; 200/300mm Height; Temperature range Max. 1000°C; Operating pressure Max. 500mbar, Rotation angle: 0-90° Adjustable, PAS1155-R, Mounted digital I/P-positioner, 4-20mA, Compressed air filters, 5ym, DN150, Wafer, Leakage rate 1%, In case of failure of the control signal the butterflyvalve will be open

Intrastat No.: 84818085
Country of origin: Germany

Weight: 41.366 Kg
Short Itemnumber: BDH2150T001

ring-butterfly damper with pneumatic actuator, single acting, DN150, PN6/10/16; body, disc and shaft AISI 314; packing gland adjustable graphite sealing cord; mounting bracket zinc plated steel; 200/300mm height; temperature range max. 1000°C; operating pressure max. 500mbar, rotation angle : 0-90° adjustable, PAS1155-R, mounted digital I/P-positioner, 4-20mA, compressed air filters, 5ym, DN150, wafer, leakage rate 1%, in case of failure of the control signal the butterflyvalve will be open

On request

This combination does not exist.

Availability:

See availability

Spezifikationen
Spare Parts

No Specifications

BDH2-150-B-001 x 1.0 Pcs

BDH2-150-B-001

Ring-butterfly damper DN150, PN6/10/16; Body, Disc And Shaft 1.4841; Packing gland Adjustable graphite sealing cord; Mounting bracket Zinc plated steel; 200/300mm Height; Temperature range Max. 1000°C; Operating pressure Max. 500mbar; Mounting flange ISO F07/F10; Square diagonal 14mm
