Ball valve with pneumatic actuator BAL1-005-BLTV-S0

Price.

409,00 €
Ball valve with pneumatic actuator Series BAL1, BAT1 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAL1, BAT1
  6. BAL1-005-BLTV-S0

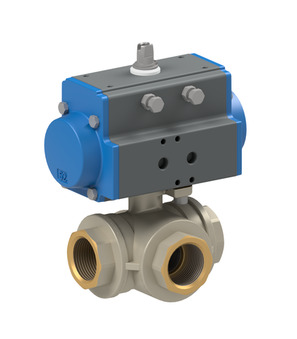

Ball valve with pneumatic actuator BAL1-005-BLTV-S0
BAT1-005-BLTV-S0-ABS53-C001-03-C002-31-LVCV20-2
BAT1-005-BLTV-S0-ABS53-C001-03-C002-31-LVCV20-2
561,70 €
561,70 €
BAL1-005-BLTV-S0-ABS53-C001-22-C002-31-6
BAL1-005-BLTV-S0-ABS53-C001-22-C002-31-6
548,40 €
548,40 €

Ball valve with pneumatic actuator BAL1-005-BLTV-S0

Ball valve with pneumatic actuator Series BAL1, BAT1; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-30bar; Length 87mm; Actuator PAS0635; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.11 Kg
Short Itemnumber:BAL1005BLTVS0
https://www.stasto.eu/web/image/product.template/87060/image_1920?unique=bbc91d7

Ball valve with pneumatic actuator Series BAL1, BAT1; 3-way-type; Sealing on three ports; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-30bar; Length 87mm; Actuator PAS0635; Ball L

409,00 € 409.0 EUR 409,00 €

price on request

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 3/4"
DN 20 mm
Length 87 mm
Designs
Ball L
pressure
Pressure range 0...30 bar
characteristics
Actuator PAS0635

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BAL1, BAT1_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAL1005BLTVS0.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BAL1, BAT1_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BAL1, BAT1_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAL1, BAT1_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAL1, BAT1_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BAL1, BAT1_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAL1, BAT1_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BAL1, BAT1_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAL1, BAT1_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAL1, BAT1_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BAL1, BAT1_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BAL1, BAT1_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BAL1, BAT1_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAL1, BAT1_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BAL1, BAT1_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAL1, BAT1_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAL1, BAT1_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BAL1, BAT1_SV.pdf
Download
Ball valve made of brass 3600-3/4"
3600-3/4" x 1.0
Ball valve made of brass 3600-3/4"
Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 3/4"; Nominal diameter 20mm; Pressure range 0-30bar; Length 87mm; Ball L
Add to Cart
Pneumatic actuator PAS0635
PAS0635 x 1.0
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
Add to Cart
