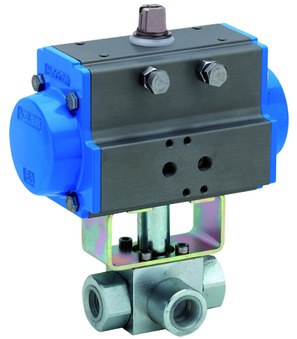

Ball valve with pneumatic actuator BAI1-004-UCPN-D0

Name: Ball valve with pneumatic actuator BAI1-004-UCPN-D0
Brand: STASTO
SKU: BAI1-004-UCPN-D0

Ball valve with pneumatic actuator Series BAI1; Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar; G 1/2"; Nominal diameter 11,5mm; Length 85mm; Actuator PAD063; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.61 Kg
Short Itemnumber: BAI1004UCPND0

On request

Female thread
- G 1/2"
DN
- 11,5 mm
Length
- 85 mm
Actuator
- PAD063
Ball
- L

This combination does not exist.

Availability:

dimension
Female thread	G 1/2"
DN	11,5 mm
Length	85 mm
characteristics
Actuator	PAD063
Others
Ball	L

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BAI1004UCPND0.stp

Download

BK3-G1/2-13 11231L-B0FA x 1.0

BK3-G1/2-13 11231L-B0FA

Ball valve, PN350, female/female/female thread, 1/2" body steel, seals POM/NBR L-port, 3-way L-port version with holes for actuator mounting F03

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

04805007001 x 1.0

04805007001

Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm

Add to Cart

A4/457/04 x 1.0

A4/457/04

Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
