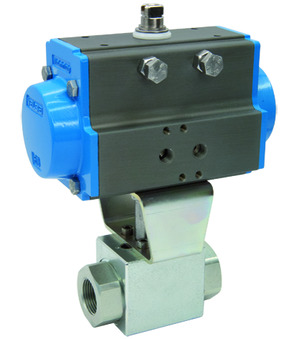

Ball valve with pneumatic actuator BAH1-008-UCPN-D0A

Ball valve with pneumatic actuator BAH1-008-UCPN-D0A

Ball valve with pneumatic actuator Series BAH1; ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 11/2"; Nominal diameter 24mm; Pressure range 0...350bar; Length 124mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.1 Kg
Short Itemnumber: BAH1008UCPND0A
https://www.stasto.eu/web/image/product.template/87931/image_1920?unique=bcfc56d

Ball valve with pneumatic actuator Series BAH1; ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 11/2"; Nominal diameter 24mm; Pressure range 0...350bar; Length 124mm; Actuator PAD075

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...350 bar
Female thread G 1 1/2"
DN 24 mm
Length 124 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...350 bar
Female thread G 1 1/2"
DN 24 mm
Length 124 mm
Design ATEX
Brand STASTO

BAH1-008-UCPN-D0A

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BKH-G112-25-11231-B0FA x 1.0 Pcs
BKH-G112-25-11231-B0FA
High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -10...+100°C; G 11/2"; Nominal diameter 25mm; Pressure range 0-400bar; Length 124mm; Drilled for mounting an actuator F05
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
