BAEB-040-UITV-D0-ABS51-C001-22-C002-31-LV-1

Price.

990,47 €
Flanged ball valve with pneumatic actuator Series BAEB, BAEA Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BAEB, BAEA
  6. BAEB-040-UITV-D0-ABS51-C001-22-C002-31-LV-1
BAEB-040-UITV-D0-ABS51-C001-22-C002-31-LV-1
BAEB-040-UITV-D0-ABS51-C001-22-C002-31-6
BAEB-040-UITV-D0-ABS51-C001-22-C002-31-6
985,44 €
985,44 €
BAEB-040-UITV-D0-ABS51-C001-22-C002-31-LVCV20-1
BAEB-040-UITV-D0-ABS51-C001-22-C002-31-LVCV20-1
999,27 €
999,27 €

BAEB-040-UITV-D0-ABS51-C001-22-C002-31-LV-1

BAEB-040-UITV-D0

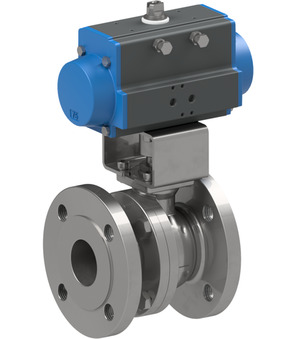

Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-40bar; Flange PN40; Length 140mm; Actuator PAD063
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LV-1
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.53 Kg
Short Itemnumber:BAEB040UITVD0ABS51C00122C00231LV1
https://www.stasto.eu/web/image/product.template/198665/image_1920?unique=dfcd1d5

BAEB-040-UITV-D0
flanged ball valve with pneumatic actuator series BAEB, BAEA; fire-safe; TA-Luft; length according to EN558−1R27; body zinc plated steel; ball AISI 304; seals PTFE/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; nominal diameter 40mm; pressure range 0-40bar; flange PN40; length 140mm; actuator PAD063
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-LV-1
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

990,47 € 990.47 EUR 990,47 €

price on request

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Valve interface Namur 1/4"
DN 40 mm
Length 140 mm
Flange PN40
Designs
Connector size 22
design
Design With integrated LED-yellow and VDR
Electrical key figures
Voltage 230V/50-60Hz
pressure
Pressure range 0...40 bar
characteristics
Coil C001
Actuator PAD063
