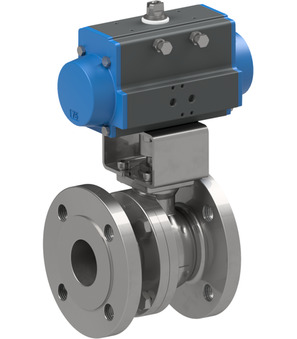

Flanged ball valve with pneumatic actuator BAEB-015-UITV-S0

Flanged ball valve with pneumatic actuator BAEB-015-UITV-S0

Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm; Actuator PAS0525

Flanschkugelhahn mit Druckluftdrehantrieb Serie BAEB, BAEA
Flanschkugelhahn mit Druckluftdrehantrieb Serie BAEB, BAEA
Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.02 Kg
Short Itemnumber: BAEB015UITVS0
https://www.stasto.eu/web/image/product.template/86888/image_1920?unique=d975ddd

Flanged ball valve with pneumatic actuator Series BAEB, BAEA; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm; Actuator PAS0525

558,60 € 558.6 EUR 558,60 €

Not Available For Sale

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 15 mm
Flange PN40
Length 115 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 15 mm
Flange PN40
Length 115 mm

BAEB-015-UITV-S0

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

2

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

2

CAD / 3D

1
English
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

2

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

2

CAD / 3D

1
French / Français
ZIP

Data Sheets

2

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

2

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

2

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

2

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

2

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

2

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

2

CAD / 3D

1
Flanged ball valve 760001-15
760001-15 x 1.0 Pcs
Flanged ball valve 760001-15
Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm
Pneumatic actuator PAS0525
PAS0525 x 1.0 Pcs
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
RI3519 x 1.0 Pcs
RI3519
Mounting bracket; F05/F03-F04; Bolt 11-7
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4603
RI4603
Diameter
52 mm
RI4617
RI4617
Diameter
52 mm
RI4645
RI4645
Diameter
52 mm
