Flanged ball valve with pneumatic actuator Series BAEB, BAEA Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - pneumatically operated
  5. Flanged ball valve with pneumatic actuator Series BAEB, BAEA
  6. BAEB-015-SSTV-D0-ABS54-C001-03-C002-31-6-EB0X01

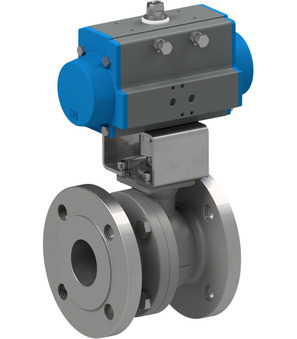

BAEB-015-SSTV-D0-ABS54-C001-03-C002-31-6-EB0X01

BAEB-015-SSTV-D0-ABS54-C001-03-C002-31-6-EB0X01

BAEB-015-SSTV-D0
flanged ball valve with pneumatic actuator series BAEB, BAEA; fire-safe; TA-Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0-40bar; flange PN40; length 115mm; actuator PAD032
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.248 Kg
Short Itemnumber: BAEB015SSTVD0ABS54C00103C002316EB0X01
https://www.stasto.eu/web/image/product.template/233520/image_1920?unique=d9024cc

BAEB-015-SSTV-D0
flanged ball valve with pneumatic actuator series BAEB, BAEA; fire-safe; TA-Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0-40bar; flange PN40; length 115mm; actuator PAD032
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

868,50 € 868.5 EUR 868,50 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
Contact Us

Share

dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
Valve interface Namur 1/4"
DN 15 mm
Length 115 mm
Flange PN40
Designs
Connector size 22
Switch type Crouzet 831613
design
Design Standard
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
Switching capacity 4A/250VAC-1A/24VDC
pressure
Pressure range 0...40 bar
materials
Contact material Silver-nickel
Material of case Plastic
characteristics
Coil C001
Actuator PAD032
Actuator 2 PAS
