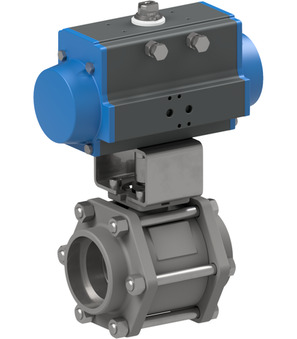

Ball valve with pneumatic actuator BAC5-011-SSTV-S0

Ball valve with pneumatic actuator BAC5-011-SSTV-S0

Ball valve with pneumatic actuator Series BAC5; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0-16bar; Length 180mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 28.57 Kg
Short Itemnumber: BAC5011SSTVS0
https://www.stasto.eu/web/image/product.template/86717/image_1920?unique=bbc91d7

Ball valve with pneumatic actuator Series BAC5; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0-16bar; Length 180mm; Actuator PAS1255

1.674,10 € 1674.1 EUR 1.674,10 €

price on request

  • Socket weld ends
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Socket weld ends 80 mm
DN 80 mm
Length 180 mm
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS1255

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
2
Data sheet_Ball valve with pneumatic actuator Series BAC5_EN.pdf
Download
Data sheet_Ball valve with pneumatic actuator Series BAC5_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Ball valve with pneumatic actuator Series BAC5_EN.pdf
Download
CAD / 3D
1
CADSTEP_BAC5011SSTVS0.stp
Download

ZIP
Datové listy
2
Datový list_kulový kohout s otočným pneumatickým pohonem série BAC5_CS.pdf
Download
Datový list_kulový kohout s otočným pneumatickým pohonem série BAC5_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout s otočným pneumatickým pohonem série BAC5_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BAC5_DA_DK.pdf
Download

ZIP
Datenblätter
2
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAC5_DE.pdf
Download
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BAC5_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Kugelhahn mit Druckluftdrehantrieb Serie BAC5_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BAC5_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BAC5_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BAC5_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BAC5_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BAC5_HR.pdf
Download

ZIP
Adatlapok
2
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAC5_HU.pdf
Download
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAC5_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BAC5_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BAC5_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BAC5_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BAC5_NL.pdf
Download

ZIP
Karty katalogowe
2
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAC5_PL.pdf
Download
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BAC5_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy z napędem pneumatycznym Seria BAC5_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BAC5_RO.pdf
Download

ZIP
Podatkovni listi
2
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAC5_SL.pdf
Download
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAC5_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BAC5_SL.pdf
Download

ZIP
Data Sheets
2
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAC5_SRLATIN.pdf
Download
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BAC5_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa pneumatskim aktuatorom serije BAC5_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BAC5_SV.pdf
Download
Ball valve made of stainless steel 711000-80
711000-80 x 1.0
Ball valve made of stainless steel 711000-80
Ball valve made of stainless steel Series 711000; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0-16bar; Length 180mm
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
