STASTO Allgemeine Preisliste (EUR)

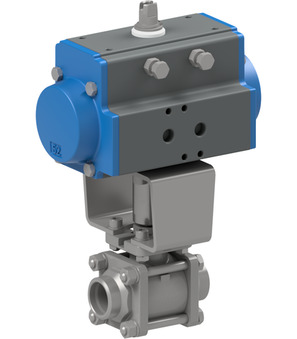

BAC4-010-SSTV-D0-ABS51-C001-03-C002-31-6-EB0X01

BAC4-010-SSTV-D0-ABS51-C001-03-C002-31-6-EB0X01

BAC4-010-SSTV-D0
Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic

Kugelhahn mit Druckluftdrehantrieb Serie BAC4
Kugelhahn mit Druckluftdrehantrieb Serie BAC4
Kugelhahn mit Druckluftdrehantrieb Serie BAC4
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 13.468 Kg
Short Itemnumber: BAC4010SSTVD0ABS51C00103C002316EB0X01
https://www.stasto.eu/web/image/product.template/184537/image_1920?unique=8acb53c

BAC4-010-SSTV-D0
ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 65mm; pressure range 0-16bar; length 153mm; actuator PAD085
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

1.345,00 € 1345.0 EUR 1.345,00 €

Not Available For Sale

excl. tax
  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
Butt weld ends 65 mm
DN 65 mm
Length 153 mm
All specifications (9)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
Butt weld ends 65 mm
DN 65 mm
Length 153 mm
Voltage 24VDC / 48V/50-60Hz
Design Standard
Switch type Crouzet 831613
Contact material Silver-nickel
Material of case Plastic

BAC4-010-SSTV-D0-ABS51-C001-03-C002-31-6-EB0X01

Documents

17 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

6

Declarations of Conformity

5

CAD / 3D

5
Danish / Dansk
ZIP

Data Sheets

5

CAD / 3D

5
German / Deutsch
ZIP

Data Sheets

6

Assembly and Operating Instructions

1

Declarations of Conformity

5

CAD / 3D

5
Greek / Ελληνικά
ZIP

Data Sheets

5

CAD / 3D

5
English
ZIP

Data Sheets

6

Assembly and Operating Instructions

1

Declarations of Conformity

5

CAD / 3D

5
Spanish / Español
ZIP

Data Sheets

5

CAD / 3D

5
Finnish / Suomi
ZIP

Data Sheets

5

CAD / 3D

5
French / Français
ZIP

Data Sheets

5

CAD / 3D

5
Croatian / hrvatski jezik
ZIP

Data Sheets

5

CAD / 3D

5
Hungarian / Magyar
ZIP

Data Sheets

6

Declarations of Conformity

5

CAD / 3D

5
Italian / Italiano
ZIP

Data Sheets

5

CAD / 3D

5
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

5

CAD / 3D

5
Dutch / Nederlands
ZIP

Data Sheets

5

CAD / 3D

5
Polish / Język polski
ZIP

Data Sheets

6

Declarations of Conformity

5

CAD / 3D

5
Romanian / română
ZIP

Data Sheets

5

CAD / 3D

5
Slovenian / slovenščina
ZIP

Data Sheets

6

Declarations of Conformity

5

CAD / 3D

5
Serbian (Latin) / srpski
ZIP

Data Sheets

6

Declarations of Conformity

5

CAD / 3D

5
Swedish / Svenska
ZIP

Data Sheets

5

CAD / 3D

5
Ball valve with pneumatic actuator BAC4-010-SSTV-D0
BAC4-010-SSTV-D0 x 1.0 Pcs
Ball valve with pneumatic actuator BAC4-010-SSTV-D0
Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085
Mounted pilot valve ABS51
ABS51 x 1.0 Pcs
Mounted pilot valve ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
C002-31-6 x 1.0 Pcs
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01
EB0X01 x 1.0 Pcs
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic
