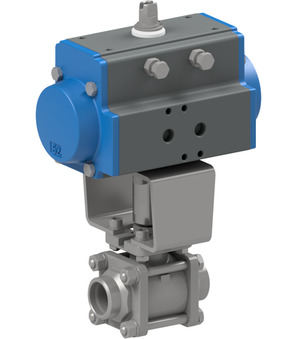

Ball valve with pneumatic rotary actuator BAC4-008-SSTV-D0 (copy)

Ball valve with pneumatic rotary actuator BAC4-008-SSTV-D0 (copy)

BAC4-008-SSTV-D0
ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAD063
EP0S11
mounted positioner; digital I/P-positioner, 4-20 mA; actuator PAD052-270

Intrastat No.: 84818081
Country of origin: France
Weight: 6.386 Kg
Short Itemnumber: BAC4008SSTVD0EP0S11
https://www.stasto.eu/web/image/product.template/238256/image_1920?unique=bbc91d7

BAC4-008-SSTV-D0
ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAD063
EP0S11
mounted positioner; digital I/P-positioner, 4-20 mA; actuator PAD052-270

3.023,00 € 3023.0 EUR 3.023,00 €

price on request

  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Butt weld ends 40 mm
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
DN 40 mm
Length 116 mm
function
Function Double acting
pressure
Pressure range 0...25 bar
characteristics
Actuator PAD063
