BAC4-006-SSTV-D0-ABS51-C001-03-C002-31-6

Price.

574,40 €

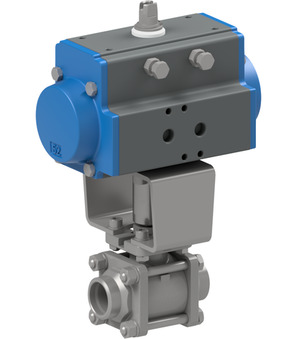

Ball valve with pneumatic actuator Series BAC4 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - pneumatically operated
  5. Ball valve with pneumatic actuator Series BAC4
  6. BAC4-006-SSTV-D0-ABS51-C001-03-C002-31-6
BAC4-006-SSTV-D0-ABS51-C001-03-C002-31-6
BAC4-006-SSTV-D0-ABS51-C001-22-C002-31-LVCV20-1
BAC4-006-SSTV-D0-ABS51-C001-22-C002-31-LVCV20-1
588,80 €
588,80 €
BAC4-006-SSTV-D0-ABS51-C001-03-C002-31-6-EB0X92
BAC4-006-SSTV-D0-ABS51-C001-03-C002-31-6-EB0X92
1.381,80 €
1.381,80 €

BAC4-006-SSTV-D0-ABS51-C001-03-C002-31-6

BAC4-006-SSTV-D0
Ball valve with pneumatic actuator Series BAC4; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAD052
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.09 Kg
Short Itemnumber:BAC4006SSTVD0ABS51C00103C002316
https://www.stasto.eu/web/image/product.template/197670/image_1920?unique=94b97ec

BAC4-006-SSTV-D0
ball valve with pneumatic actuator series BAC4; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

574,40 € 574.4 EUR 574,40 €

price on request

  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Butt weld ends 25 mm
Valve interface Namur 1/4"
DN 25 mm
Length 92 mm
Designs
Connector size 22
design
Design Standard
Electrical key figures
Voltage 24VDC / 48V/50-60Hz
pressure
Pressure range 0...40 bar
characteristics
Coil C001
Actuator PAD052
