BAC1-011-SSTV-D0A

BAC1-011-SSTV-D0A

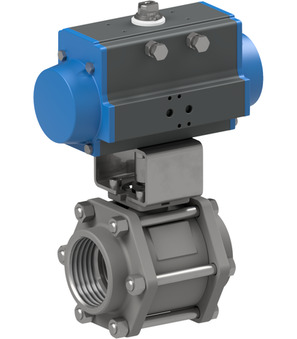

Ball valve with pneumatic rotary actuator 85 double-acting, body and ball 1.4401, thread i/i ATEX antistatic connection RP3"

Intrastat No.: 84818081
Country of origin: Italy
Weight: 17.48 Kg
Short Itemnumber: BAC1011SSTVD0A
https://www.stasto.eu/web/image/product.template/86643/image_1920?unique=87fb56f

1.658,80 € 1658.8 EUR 1.658,80 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Brand STASTO
Brand STASTO
Ball valve made of stainless steel BA033-30-L-A
BA033-30-L-A x 1.0 Pcs
Ball valve made of stainless steel BA033-30-L-A
Ball valve made of stainless steel Series BA033-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…16bar; Length 180mm
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
