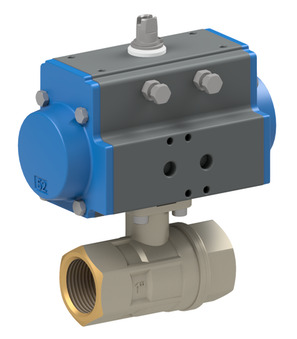

Ball valve with pneumatic actuator BAB1-011-BLTV-S0

Ball valve with pneumatic actuator BAB1-011-BLTV-S0

Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0-16bar; Length 188mm; Actuator PAS0855

Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 11.11 Kg
Short Itemnumber: BAB1011BLTVS0
https://www.stasto.eu/web/image/product.template/86579/image_1920?unique=8861a40

Ball valve with pneumatic actuator Series BAB1; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0-16bar; Length 188mm; Actuator PAS0855

1.175,40 € 1175.4 EUR 1.175,40 €

Not Available For Sale

excl. tax
  • Diameter
  • Connection
  • Male thread
  • Stroke
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Diameter Hose
  • Piston rod thread
  • Function
  • Actuation
  • Direction of flow control
  • Connector size
  • Switch type
  • Description
  • Design
  • Voltage
  • Switching capacity
  • Push force at 6 bar
  • Pressure range
  • Seal
  • Contact material
  • Material of case
  • Body
  • Coil
  • Actuator
  • Flow rate
  • Actuator 2
  • Max. inlet pressure
  • Series
  • Flow rate at 6.3bar/Δp=1bar
  • Brand
  • Screen
  • Suitable silencer

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
Female thread RP 3"
DN 80 mm
Length 188 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
Female thread RP 3"
DN 80 mm
Length 188 mm

BAB1-011-BLTV-S0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of brass 2500-3"
2500-3" x 1.0 Pcs
Ball valve made of brass 2500-3"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0…16bar; Length 188mm; Flange ISO5211 F07; Square 14mm
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
