STASTO Allgemeine Preisliste (EUR)

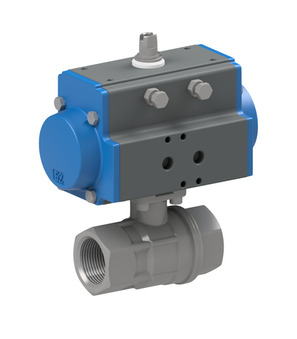

Ball valve with pneumatic actuator BAB1-009-SSTV-D0-ABS54-PI06-C001-03-C002-31-LV-2

Ball valve with pneumatic actuator BAB1-009-SSTV-D0-ABS54-PI06-C001-03-C002-31-LV-2

BAB1-009-SSTV-D0
Ball valve with pneumatic actuator Series BAB1; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 135mm; Actuator PAD052
ABS54-PI06
Mounted pilot valve; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270; Hose connection Push-in fitting 6mm
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Kugelhahn mit Druckluftdrehantrieb Serie BAB1
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 4.59 Kg
Short Itemnumber: BAB1009SSTVD0ABS54PI06C00103C00231LV2
https://www.stasto.eu/web/image/product.template/184799/image_1920?unique=8acb53c

BAB1-009-SSTV-D0
ball valve with pneumatic actuator series BAB1; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 135mm; actuator PAD052
ABS54-PI06
mounted pilot valve; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270; hose connection push-in fitting 6mm
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

688,70 € 688.7 EUR 688,70 €

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
Female thread RP 2"
DN 50 mm
Length 135 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
Female thread RP 2"
DN 50 mm
Length 135 mm
Voltage 24VDC / 48V/50-60Hz
Design With integrated LED-yellow and VDR
