STASTO Allgemeine Preisliste (EUR)

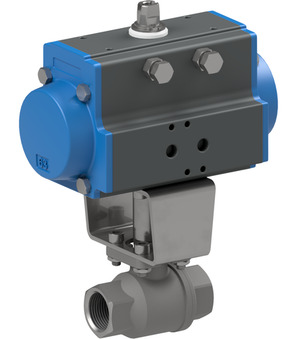

Ball valve with pneumatic actuator BA891-12N-S0-A

Ball valve with pneumatic actuator BA891-12N-S0-A

Ball valve with pneumatic actuator Series BA891; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; 1/2"NPT; Nominal diameter 15mm; Pressure range 0...140bar; Length 66mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA89112NS0A
https://www.stasto.eu/web/image/product.template/238900/image_1920?unique=db88445

Ball valve with pneumatic actuator Series BA891; ATEX II 2 G/D; Female thread; Body, Ball AISI 316; Seals PTFE-Graphite reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; 1/2"NPT; Nominal diameter 15mm; Pressure range 0...140bar; Length 66mm; Actuator PAS0635

364,60 € 364.6 EUR 364,60 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...140 bar
Female thread 1/2" NPT
DN 15 mm
Length 66 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...140 bar
Female thread 1/2" NPT
DN 15 mm
Length 66 mm
Design ATEX

BA891-12N-S0-A

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

2
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

2
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

2
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

2
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

2
Serbian (Latin) / srpski
ZIP

Data Sheets

2
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA891-12N-L-A
BA891-12N-L-A x 1.0 Pcs
Ball valve made of stainless steel BA891-12N-L-A
Ball valve made of stainless steel Series BA069-N; ATEX II 2 G/D; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; NPT 1/2"; Nominal diameter 15mm; Pressure range 0...140bar; Length 66mm
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3782 x 1.0 Pcs
RI3782
Mounting bracket; F03/F03,11-5
