BA851-10-T0
SK-CVRSB3-15-003
SK-CVRSB3-15-003
116,00 €
116,00 €
SK-CVRHB3-P-15-002
SK-CVRHB3-P-15-002
119,60 €
119,60 €

BA851-10-T0

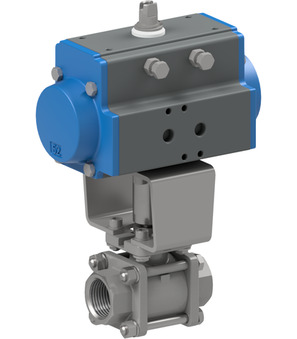

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PEEK/FFKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+250°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAS0635-A

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.39 Kg
Short Itemnumber:BA85110T0
https://www.stasto.eu/web/image/product.template/213532/image_1920?unique=09e0acf

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PEEK/FFKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+250°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAS0635-A

934,90 € 934.9 EUR 934,90 €

price on request

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BA851-10-L
    BA851-10-L x 1.0
    BA851-10-L
    Ball valve made of stainless steel; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Stem 1.4542; Seals PEEK/FFKM; Medium temperature -20...+250°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm
    Add to Cart
    PAS0855-HB
    PAS0855-HB x 1.0
    PAS0855-HB
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Seals FKM; Temperature range -20...+150°C; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
