BA701-38-S0-0

Name: BA701-38-S0-0
Brand: STASTO
SKU: BA701-38-S0-0
Price: 907.6 EUR
Availability: InStock

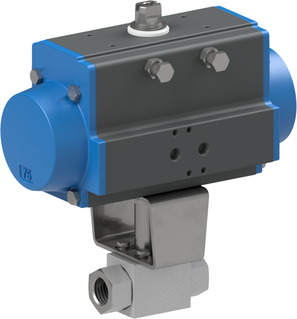

ball valve with pneumatic actuator; female thread; housing AISI 316Ti; ball AISI 316Ti hard chrome plated; seals PEEK/FKM; with erosion protection ring; for gases; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+200°C; G 3/8"; nominal diameter 10mm; pressure range 0...500bar; length 72mm; actuator PAS1005; free of oil and grease for oxygen

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.26 Kg
Short Itemnumber: BA70138S00

907,60 € 907.6 EUR 907,60 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA701-38-B-0 x 1.0

BA701-38-B-0

High pressure ball valve; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK/FKM; With erosion protection ring; For gases; Medium temperature -20...+60°C; Connection G3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm; Free of oil and grease for oxygen; Flange ISO5211 F03; Square 9mm

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

ATSV0703 x 1.0

ATSV0703

Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F03; Height 60mm

Add to Cart

IV/00088/13 x 1.0

IV/00088/13

Bolt; 1.4305; Diameter 20mm; Height of the bolt 55mm; Male square 14mm; Height of the male square 18mm; Female square 9mm; Height of the female square 9mm
