BA670-34-S0-D

Name: BA670-34-S0-D
Brand: STASTO
SKU: BA670-34-S0-D

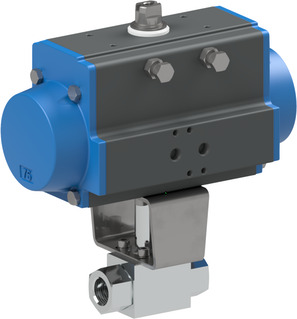

ball valve with pneumatic actuator series BA670-S-D; female thread; body AISI 316Ti; ball AISI 316Ti hard chrome plated; seals POM/NBR; with erosion protection ring; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+100°C; G 3/4"; nominal diameter 20mm; pressure range 0...350bar; length 95mm; actuator PAS1405

Intrastat No.: 84818081
Country of origin: Italy
Weight: 24.73 Kg
Short Itemnumber: BA67034S0D

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA670-34-B x 1.0

BA670-34-B

High pressure ball valve Series BA670; Drilled for mounting an actuator; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals POM/NBR; Medium temperature -30...+100°C; With erosion protection ring; G 3/4"; Nominal diameter 20mm; Pressure range 0...350bar; Length 95mm; Flange ISO5211 F05

Add to Cart

PAS1405 x 1.0

Pneumatic actuator PAS1405

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm

Add to Cart

ATSV1005 x 1.0

ATSV1005

Mounting bridge; Material Zinc plated steel; Flange 1 F10; Flange 2 F05; Height 80mm

Add to Cart

IV/00218/20 x 1.0

IV/00218/20

Bolt; 1.4305; Diameter 40mm; Height of the bolt 79mm; Male square 27mm; Height of the male square 28mm; Female square 14mm; Height of the female square 18mm

Add to Cart
