STASTO Allgemeine Preisliste (EUR)
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA670-34-S0
BA670-34-S0

BA670-34-S0

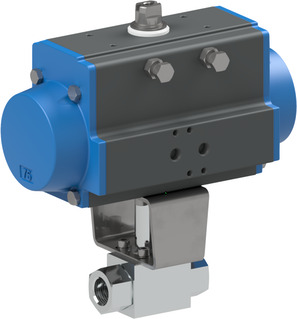

Ball valve with pneumatic actuator Series BA670-S; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals POM/NBR; With erosion protection ring; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+100°C; G 3/4"; Nominal diameter 20mm; Pressure range 0...350bar; Length 95mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.67 Kg
Short Itemnumber: BA67034S0
https://www.stasto.eu/web/image/product.template/169073/image_1920?unique=94b97ec

ball valve with pneumatic actuator series BA670-S; female thread; body AISI 316Ti; ball AISI 316Ti hard chrome plated; seals POM/NBR; with erosion protection ring; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+100°C; G 3/4"; nominal diameter 20mm; pressure range 0...350bar; length 95mm; actuator PAS1155

1.084,70 € 1084.7 EUR 1.084,70 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BA670-34-B x 1.0
    BA670-34-B
    High pressure ball valve Series BA670; Drilled for mounting an actuator; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals POM/NBR; Medium temperature -30...+100°C; With erosion protection ring; G 3/4"; Nominal diameter 20mm; Pressure range 0...350bar; Length 95mm; Flange ISO5211 F05
    Add to Cart
    Pneumatic actuator PAS1155
    PAS1155 x 1.0
    Pneumatic actuator PAS1155
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
    Add to Cart
    A4/338/99 x 1.0
    A4/338/99
    Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
    Add to Cart
