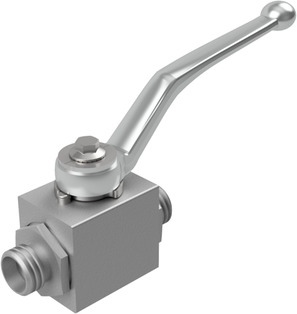

BA670-28L-L-A3C
High pressure ball valve; Male thread According to ISO 8434-1 (DIN 2353); Body 1.4571; Ball 1.4571 Hard chrome plated; Seals POM/NBR; Medium temperature -30...+100°C; With erosion protection ring; Connection 28L/M36x2; Nominal diameter 25mm; Pressure range 0...350bar; Length 108mm; ATEX-declaration 2014/34/ECIncl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness
Country of origin: Germany
Weight: 2.0 Kg
Short Itemnumber: BA67028LLA3C
high pressure ball valve; male thread according to ISO 8434-1 (DIN 2353); body AISI 316Ti; ball AISI 316Ti hard chrome plated; seals POM/NBR; medium temperature -30...+100°C; with erosion protection ring; connection 28L/M36x2; nominal diameter 25mm; pressure range 0...350bar; length 108mm; ATEX-declaration 2014/34/ECincl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness
| Design | ATEX |
