Ball valve with pneumatic actuator BA668-34-S0
Ball valve with pneumatic actuator BA102-38-S0
Ball valve with pneumatic actuator BA102-38-S0
742,30 €
742,30 €
BA102-38-S0-ABS53-C001-22-C002-31-LV-1
BA102-38-S0-ABS53-C001-22-C002-31-LV-1
886,82 €
886,82 €

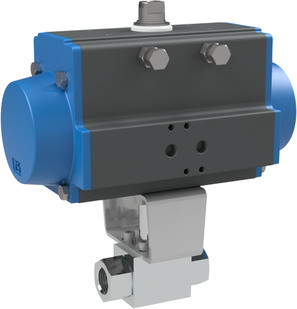

Ball valve with pneumatic actuator BA668-34-S0

Ball valve with pneumatic actuator Series BA668; Female thread; Body, Ball 1.4571/1.4404; Seals POM/FKM; With erosion protection ring; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For gases; G 3/4"; Nominal diameter 20mm; Pressure range 0…350bar; Length 95mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.3 Kg
Short Itemnumber:BA66834S0
https://www.stasto.eu/web/image/product.template/139655/image_1920?unique=541c88b

ball valve with pneumatic actuator series BA668; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/FKM; with erosion protection ring; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for gases; G 3/4"; nominal diameter 20mm; pressure range 0…350bar; length 95mm; actuator PAS1155

999.999,00 € 999999.0 EUR 999.999,00 €

price on request

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 20 mm
Length 95 mm
pressure
Pressure range 0...350 bar
characteristics
Actuator PAS1155

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
2
Data sheet_Ball valve with pneumatic actuator Series BA668_EN.pdf
Download
Data sheet_Ball valve with pneumatic actuator Series BA668_EN.pdf
Download
CAD / 3D
1
CADSTEP_BA66834S0.stp
Download

ZIP
Datové listy
2
Datový list_kulový kohout s otočným pneumatickým pohonem série BA668_CS.pdf
Download
Datový list_kulový kohout s otočným pneumatickým pohonem série BA668_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med pneumatisk drejedrev Serie BA668_DA_DK.pdf
Download

ZIP
Datenblätter
2
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA668_DE.pdf
Download
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA668_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA668_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA668_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA668_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA668_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA668_HR.pdf
Download

ZIP
Adatlapok
2
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA668_HU.pdf
Download
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA668_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA668_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA668_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA668_NL.pdf
Download

ZIP
Karty katalogowe
2
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA668_PL.pdf
Download
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA668_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA668_RO.pdf
Download

ZIP
Podatkovni listi
2
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA668_SL.pdf
Download
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA668_SL.pdf
Download

ZIP
Data Sheets
2
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA668_SRLATIN.pdf
Download
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA668_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med pneumatiskt vriddon Serie BA668_SV.pdf
Download
BA668-34-B x 1.0
High pressure ball valve BA668-34-B
High pressure ball valve Series BA668; Female thread; Drilled for mounting an actuator; Body, Ball 1.4408; Seals POM/FKM; With erosion protection ring; For gases; Medium temperature -20...+100°C; G 3/4"; Nominal diameter 20mm; Pressure range 0…350bar; Length 95mm; Flange ISO5211 F05; Square 14mm
Add to Cart
Pneumatic actuator PAS1155
PAS1155 x 1.0
Pneumatic actuator PAS1155
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
Add to Cart
A4/338/99 x 1.0
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
Add to Cart
