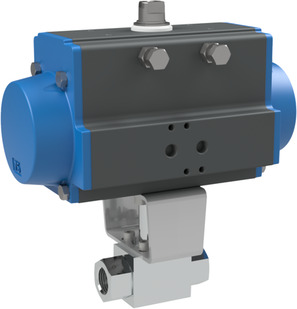

Ball valve with pneumatic actuator BA668-112-S0

Ball valve with pneumatic actuator BA668-112-S0

Ball valve with pneumatic actuator Series BA668; Female thread; Body, Ball 1.4571/1.4404; Seals POM/FKM; With erosion protection ring; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For gases; G 11/2"; Nominal diameter 25mm; Pressure range 0…250bar; Length 130mm; Actuator PAS1255

Kugelhahn mit Druckluftdrehantrieb Serie BA668
Kugelhahn mit Druckluftdrehantrieb Serie BA668
Kugelhahn mit Druckluftdrehantrieb Serie BA668
Intrastat No.: 84818081
Country of origin: Italy
Weight: 17.06 Kg
Short Itemnumber: BA668112S0
https://www.stasto.eu/web/image/product.template/139654/image_1920?unique=6fca8dd

ball valve with pneumatic actuator series BA668; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/FKM; with erosion protection ring; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; for gases; G 11/2"; nominal diameter 25mm; pressure range 0…250bar; length 130mm; actuator PAS1255

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...250 bar
Female thread G 1 1/2"
DN 25 mm
Length 130 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...250 bar
Female thread G 1 1/2"
DN 25 mm
Length 130 mm

BA668-112-S0

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

2

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

2

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

2

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

2

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

2

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

2

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

2

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
BA668-112-B x 1.0 Pcs
High pressure ball valve BA668-112-B
High pressure ball valve Series BA668; Female thread; Drilled for mounting an actuator; Body, Ball 1.4408; Seals POM/FKM; With erosion protection ring; For gases; Medium temperature -20...+100°C; G 11/2"; Nominal diameter 25mm; Pressure range 0…250bar; Length 130mm; Flange ISO5211 F05; Square 14mm
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
04808007001 x 1.0 Pcs
04808007001
Mounting bridge; Zinc plated steel; F05/F07-F05; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
