BA580-14-S0

Price.

999.999,00 €
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA580-14-S0
BA580-14-S0
R364-02BKL
R364-02BKL
141,40 €
141,40 €
BA580-14-S0-A
BA580-14-S0-A
price on request

BA580-14-S0

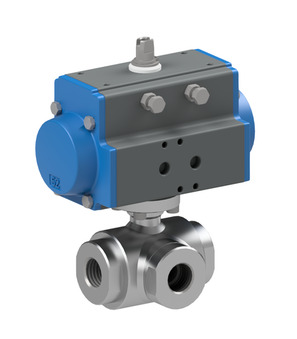

Ball valve with pneumatic actuator; 3-way-type; Ball is sealed on all sides; Body 1.4404 Polished; Ball 1.4404; Seals PTFE; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Female thread 1/4NPT"; Nominal diameter 12mm; Pressure range 0...40bar; Length 72mm; Actuator PAS0755; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 103.72 Kg
Short Itemnumber:BA58014S0
https://www.stasto.eu/web/image/product.template/140917/image_1920?unique=c27975c

ball valve with pneumatic actuator; 3-way-type; ball is sealed on all sides; body AISI 316L polished; ball AISI 316L; seals PTFE; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+160°C; female thread 1/4NPT"; nominal diameter 12mm; pressure range 0...40bar; length 72mm; actuator PAS0755; ball L

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications

    Data sheets, Instructions, 3D-files and Certificates...

    In your language
    ZIP
    CAD / 3D
    1
    CADSTEP_BA58014S0.stp
    Download
    BA580-14-B x 1.0
    BA580-14-B
    Ball valve made of stainless steel; 3-way-type; Ball is sealed on all sides; Full bore; Body, Ball 1.4401; Seal PTFE; Medium temperature -20...+160°C; Female thread 1/4"NPT; Nominal diameter 12mm; Length 72mm; Pressure range 0-40bar; Ball L; For mounting an actuator F03/9mm
    Add to Cart
    Pneumatic actuator PAS0755
    PAS0755 x 1.0
    Pneumatic actuator PAS0755
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 17,5Nm
    Add to Cart
    04806007007 x 1.0
    04806007007
    Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
    Add to Cart
    A4/457/04 x 1.0
    A4/457/04
    Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
    Add to Cart
