Ball valve made of stainless steel BA542-212-B
Ball valve made of stainless steel BA541-212-B
Ball valve made of stainless steel BA541-212-B
1.784,50 €
1.784,50 €
Ball valve made of stainless steel BA541-212-B-01
Ball valve made of stainless steel BA541-212-B-01
1.824,20 €
1.824,20 €

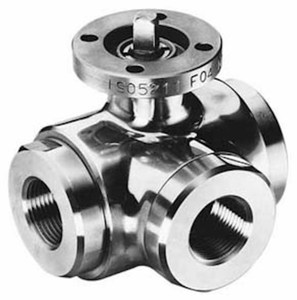

Ball valve made of stainless steel BA542-212-B

Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 21/2"; Nominal diameter 65mm; Pressure range 0...40bar; Length 160mm; Ball L; Flange ISO5211 F07; Square 17mm

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.15 Kg
Short Itemnumber:BA542212B
https://www.stasto.eu/web/image/product.template/136561/image_1920?unique=0ec923a

ball valve made of stainless steel series BA541, BA542; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; sealing on three ports; medium temperature -20...+170°C; G 21/2"; nominal diameter 65mm; pressure range 0...40bar; length 160mm; ball L; flange ISO5211 F07; square 17mm

1.784,50 € 1784.5 EUR 1.784,50 €

price on request

  • Female thread
  • DN
  • Length
  • Square
  • Flange ISO5211
  • Ball
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 2 1/2"
DN 65 mm
Length 160 mm
Square 17 mm
Designs
Flange ISO5211 F07
Ball L
pressure
Pressure range 0...40 bar
