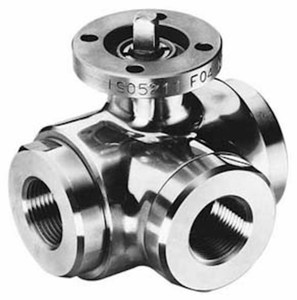

Ball valve made of stainless steel BA542-20-B-A
ball valve made of stainless steel series BA541, BA542; ATEX II 2 G/D T4; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; sealing on three ports; medium temperature -20...+170°C; G 2"; nominal diameter 50mm; pressure range 0...40bar; length 144mm; ball L; flange ISO5211 F07; square 17mm
Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.3 Kg
Short Itemnumber: BA54220BA
Country of origin: Italy
Weight: 8.3 Kg
Short Itemnumber: BA54220BA
ball valve made of stainless steel series BA541, BA542; ATEX II 2 G/D T4; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; sealing on three ports; medium temperature -20...+170°C; G 2"; nominal diameter 50mm; pressure range 0...40bar; length 144mm; ball L; flange ISO5211 F07; square 17mm
| dimension | |
|---|---|
| Female thread | G 2" |
| DN | 50 mm |
| Length | 144 mm |
| Square | 17 mm |
| Designs | |
| Flange ISO5211 | F07 |
| Ball | L |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...40 bar |
No spare parts are available for this product.
