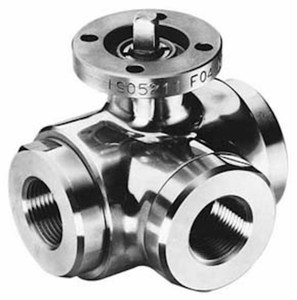

Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1/4"; Nominal diameter 12mm; Pressure range 0...100bar; Length 72mm; Ball L; Flange ISO5211 F03; Square 9mm
Country of origin: Italy
Weight: 1.24 Kg
Short Itemnumber: BA54214B
ball valve made of stainless steel series BA541, BA542; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; sealing on three ports; medium temperature -20...+170°C; G 1/4"; nominal diameter 12mm; pressure range 0...100bar; length 72mm; ball L; flange ISO5211 F03; square 9mm
Technical specifications
| Pressure range | 0...100 bar |
|---|---|
| Female thread | G 1/4" |
| DN | 12 mm |
| Length | 72 mm |
| Pressure range | 0...100 bar |
| Female thread | G 1/4" |
| DN | 12 mm |
| Length | 72 mm |
| Ball | L |
| Flange ISO5211 | F03 |
| Square | 9 mm |
BA542-14-B
