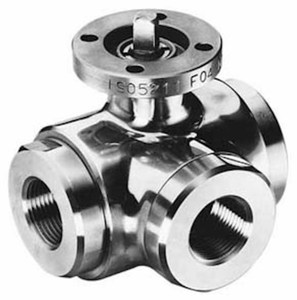

Ball valve made of stainless steel BA542-112-S0-01

Name: Ball valve made of stainless steel BA542-112-S0-01
Brand: STASTO
SKU: BA542-112-S0-01
Price: 1750.3 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 11/2"; Nominal diameter 40mm; Pressure range 0…64bar; Length 134mm; Actuator PAS1155-A; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.78 Kg
Short Itemnumber: BA542112S001

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/2"; nominal diameter 40mm; pressure range 0…64bar; length 134mm; actuator PAS1155-A; ball L

1.750,30 € 1750.3 EUR 1.750,30 €

Female thread
- G 1 1/2"
DN
- 40 mm
Length
- 134 mm
Square
- -
Flange ISO5211
- -
Ball
- L
Pressure range
- 0...64 bar

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	G 1 1/2"
DN	40 mm
Length	134 mm
Designs
Ball	L
pressure
Pressure range	0...64 bar

BA542-112-B x 1.0

Ball valve made of stainless steel BA542-112-B

Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 11/2"; Nominal diameter 40mm; Pressure range 0…64bar; Length 134mm; Ball L; Flange ISO5211 F07; Square 17mm

Add to Cart

PAS1155-A x 1.0

Pneumatic actuator PAS1155-A

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Inverse direction of rotation; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart
