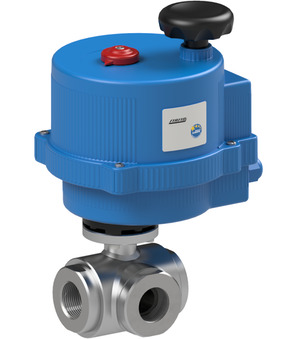

Ball valve with electrical actuator BA542-112-0H

Ball valve with electrical actuator BA542-112-0H

Ball valve with electrical actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 11/2"; DN 40mm; Pressure range 0…64bar; Length 134mm; Operating time 9s; Voltage 100-240VAC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.88 Kg
Short Itemnumber: BA5421120H
https://www.stasto.eu/web/image/product.template/137108/image_1920?unique=c096d6d

ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 11/2"; DN 40mm; pressure range 0…64bar; length 134mm; operating time 9s; voltage 100-240VAC; ball L

1.764,00 € 1764.0 EUR 1.764,00 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1 1/2"
DN 40 mm
Length 134 mm
Designs
Ball L
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB060H
Operating time 9 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with electrical actuator Series BA541, BA542_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s elektropohonem série BA541, BA542_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med elektrisk aktuator Serie BA541, BA542_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Elektroantrieb Serie BA541, BA542_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με ηλεκτρικό ενεργοποιητή Σειρά BA541, BA542_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador eléctrico Serie BA541, BA542_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili sähkötoimilaitteella Sarja BA541, BA542_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur électrique Série BA541, BA542_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s električnim pogonom Serija BA541, BA542_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett gömbcsap sorozat BA541, BA542_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore elettrico Serie BA541, BA542_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med elektrisk aktuator Serie BA541, BA542_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met elektrische aandrijving Serie BA541, BA542_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem elektrycznym Seria BA541, BA542_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu sferă cu actuator electric serie BA541, BA542_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa z električnim pogonom serija BA541, BA542_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa električnim aktuatorom serije BA541, BA542_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med elektriskt ställdon Serie BA541, BA542_SV.pdf
Download
Ball valve made of stainless steel BA542-112-B-01
BA542-112-B-01 x 1.0
Ball valve made of stainless steel BA542-112-B-01
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 11/2"; Nominal diameter 40mm; Pressure range 0…64bar; Length 134mm; Ball L; Flange ISO5211 F05; Square 14mm
Add to Cart
Electrical actuator VB060-H
VB060-H x 1.0
Electrical actuator VB060-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67
