STASTO Allgemeine Preisliste (EUR)
BA541-34-D0-01

BA541-34-D0-01

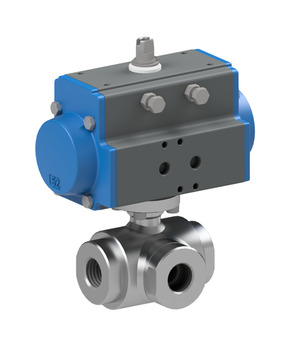

Ball valve with pneumatic actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 3/4"; Nominal diameter 20mm; Pressure range 0…100bar; Length 92mm; Actuator PAD063; Ball T; auch für Vakuum geeignet

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA54134D001
https://www.stasto.eu/web/image/product.template/176105/image_1920?unique=baeb489

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; double acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 3/4"; nominal diameter 20mm; pressure range 0…100bar; length 92mm; actuator PAD063; ball T; auch für Vakuum geeignet

673,20 € 673.2 EUR 673,20 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...100 bar
Female thread G 3/4"
DN 20 mm
Length 92 mm
All specifications (6)
Pressure range 0...100 bar
Female thread G 3/4"
DN 20 mm
Length 92 mm
Ball T
Brand STASTO
Ball valve made of stainless steel BA541-34-B-01
BA541-34-B-01 x 1.0 Pcs
Ball valve made of stainless steel BA541-34-B-01
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 3/4"; Nominal diameter 20mm; Pressure range 0...100bar; Length 92mm; Ball T; Flange ISO5211 F05; Square 14mm; Also suitable for vacuum
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
