BA541-12-30L

Name: BA541-12-30L
Brand: STASTO
SKU: BA541-12-30L
Price: 667.9 EUR
Availability: InStock

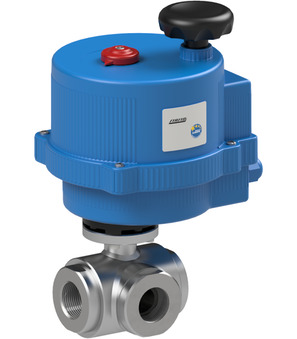

Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 1/2"; DN 15mm; Pressure range 0...40bar; Length 82mm; Operating time 10s; Voltage 24VAC/DC; Ball T; Flow path 03

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.563 Kg
Short Itemnumber: BA5411230L

ball valve with electrical actuator; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 1/2"; DN 15mm; pressure range 0...40bar; length 82mm; operating time 10s; voltage 24VAC/DC; ball T; flow path 03

667,90 € 667.9 EUR 667,90 €

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BA5411230L.stp

Download

BA541-12-B x 1.0

Ball valve made of stainless steel BA541-12-B

Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 82mm; Ball T; Flange ISO5211 F03; Square 9mm

Add to Cart

VB015-L-24 x 1.0

Electrical actuator VB015-L-24

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65

Add to Cart
