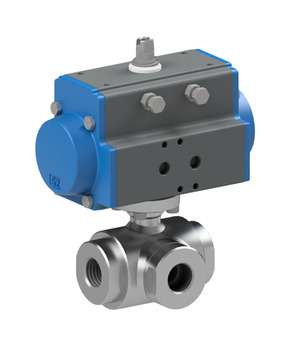

Ball valve with pneumatic rotary actuator BA541-114-S0 (copy)

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAS1005; ball T

Intrastat No.: 84818081
Country of origin:
Italy Made in Europe
Weight:
7.05 Kg
Short Itemnumber:
BA541114S0A
https://www.stasto.eu/web/image/product.template/236894/image_1920?unique=827bde9

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAS1005; ball T

1.336,70 € 1336.7 EUR 1.336,70 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Design
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability

Technical specifications

Pressure range 0...64 bar
DN 32 mm
Length 118 mm
Ball T
Pressure range 0...64 bar
DN 32 mm
Length 118 mm
Ball T
Female thread G 1 1/4"
Design ATEX
Brand STASTO
BA541-114-B-A x 1.0 Pcs
Ball valve made of stainless steel BA541-114-B-A
ball valve made of stainless steel series BA541, BA542; bare shaft; 3-way-type; female thread; full bore; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; sealing on three ports; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; ball T; flange ISO5211 F07; square 17mm
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
