BA531-10-0L

BA531-10-0L

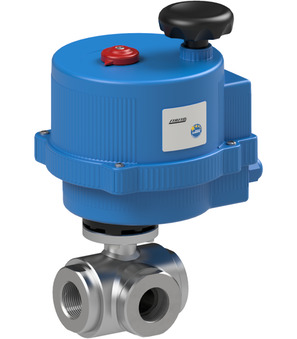

Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; 1"NPT; DN 25mm; Pressure range 0...40bar; Length 102mm; Operating time 8s; Voltage 24VAC/DC; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 102.1 Kg
Short Itemnumber: BA531100L
https://www.stasto.eu/web/image/product.template/159935/image_1920?unique=f96ddcc

ball valve with electrical actuator; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; 1"NPT; DN 25mm; pressure range 0...40bar; length 102mm; operating time 8s; voltage 24VAC/DC; ball T

999.999,00 € 999999.0 EUR 999.999,00 €

On request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BA531-10-B x 1.0
    BA531-10-B
    Ball valve made of stainless steel; 3-way-type; Ball is sealed on all sides; Full bore; Body, Ball 1.4401; Seal PTFE; Medium temperature -20...+160°C; Female thread 1"NPT; Nominal diameter 25mm; Length 102mm; Pressure range 0-65bar; Ball T; For mounting an actuator F05/14mm
    Add to Cart
    Electrical actuator VB030-0E8-Q14
    VB030-0E8-Q14 x 1.0
    Electrical actuator VB030-0E8-Q14
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 14mm; Voltage 24VAC/DC; Protection class IP67
