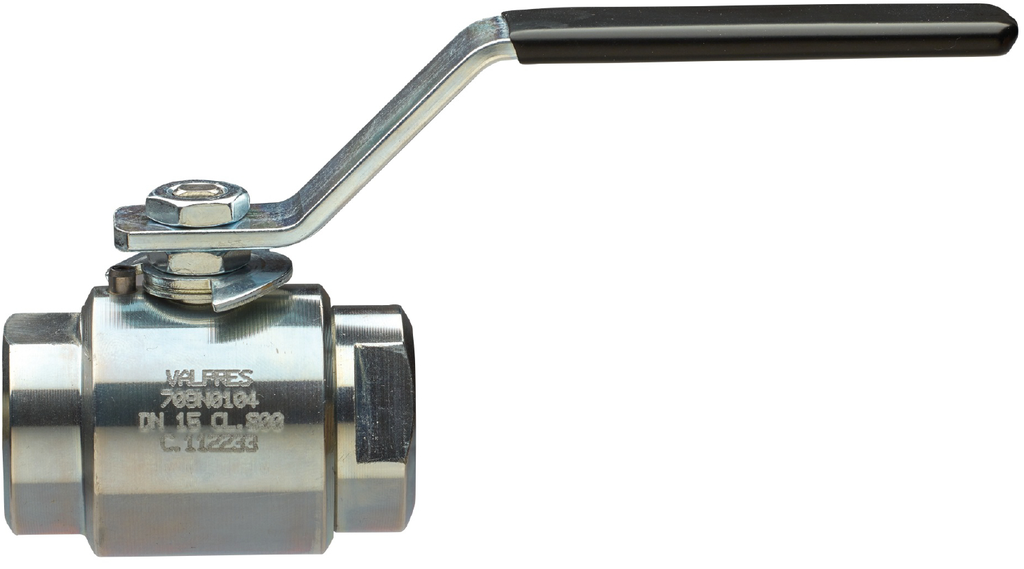

Ball valve made of steel BA487-12N-L-A
Ball valve made of steel Series BA487-L-A; ATEX II 2 G/D; Fire-Safe; Full bore; Two-parts type; Female thread; Body Steel Zinc plated; Ball 1.4404; Seals PTFE-Reinforced with carbographite; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0-138bar; Connection 1/2"NPT; Length 75mm; Free of oil and grease; Class 800
Intrastat No.: 84818081
Country of origin: Italy
Weight: 0.8 Kg
Short Itemnumber: BA48712NLA
Country of origin: Italy
Weight: 0.8 Kg
Short Itemnumber: BA48712NLA
ball valve made of steel series BA487-L-A; ATEX II 2 G/D; Fire-Safe; full bore; two-parts type; female thread; body steel zinc plated; ball AISI 316L; seals PTFE-reinforced with carbographite; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0-138bar; connection 1/2"NPT; length 75mm; free of oil and grease; Class 800
| dimension | |
|---|---|
| Female thread | 1/2" NPT |
| DN | 15 mm |
| Length | 67 mm |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...138 bar |
No spare parts are available for this product.
