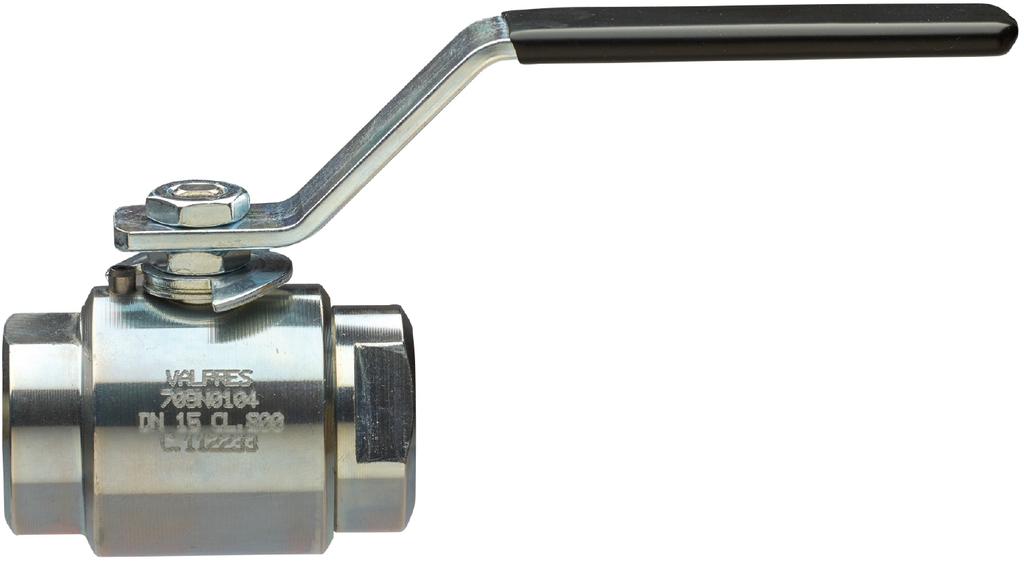

Ball valve made of steel 11/2"-40-130
Ball valve made of steel Series BA487-L-A; ATEX II 2 G/D; Fire-Safe; Full bore; Two-parts type; Female thread; Body Steel Zinc plated; Ball 1.4404; Seals PTFE-Reinforced with carbographite; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-138bar; Connection RP 11/2"; Length 135mm; Free of oil and grease; Class 800
Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.5 Kg
Short Itemnumber: BA487112LA
Country of origin: Italy
Weight: 4.5 Kg
Short Itemnumber: BA487112LA
ball valve made of steel series BA487-L-A; ATEX II 2 G/D; Fire-Safe; full bore; two-parts type; female thread; body steel zinc plated; ball AISI 316L; seals PTFE-reinforced with carbographite; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0-138bar; connection RP 11/2"; length 135mm; free of oil and grease; Class 800
| dimension | |
|---|---|
| Female thread | RP 1 1/2" |
| DN | 40 mm |
| Length | 135 mm |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...138 bar |
No spare parts are available for this product.
