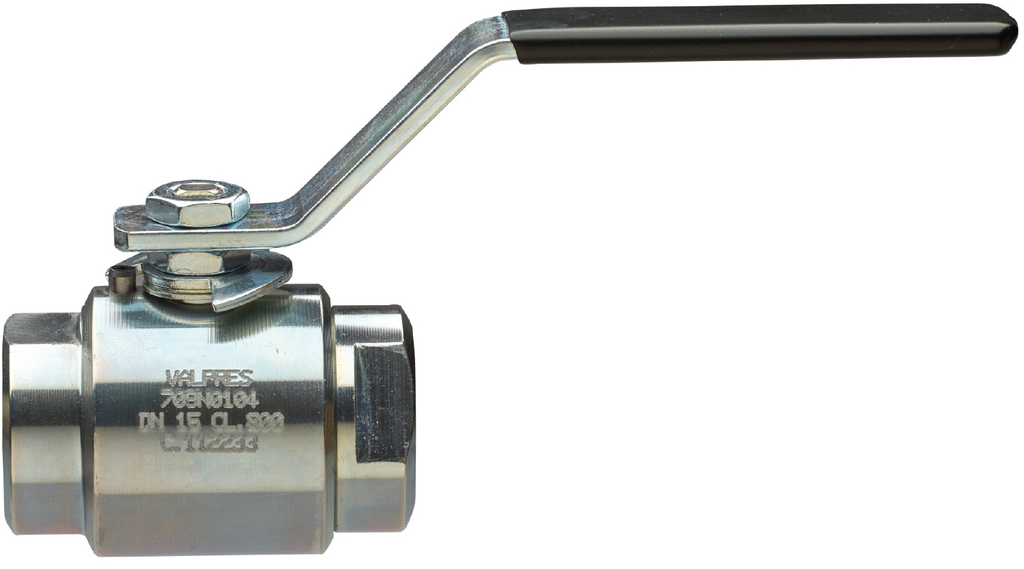

Ball valve made of stainless steel BA469-38-LLD-A
Stainless steel ball valve; ATEX ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; Fire-Safe; full passage; two-part; Internal thread; Housing, Ball 1.4404; Seals PTFE carbographite-reinforced; Medium temperature -20...+160°C; Nominal diameter 10mm; Pressure range 0...138bar; Connection RP 3/8"; Installation length 67mm; Oil and grease free; Class 800; with shut-off device
Country of origin: Italy
Short Itemnumber: BA46938LLDA
Stainless steel ball valve; ATEX ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; Fire-Safe; full passage; two-part; Internal thread; Housing, Ball 1.4404; Seals PTFE carbographite-reinforced; Medium temperature -20...+160°C; Nominal diameter 10mm; Pressure range 0...138bar; Connection RP 3/8"; Installation length 67mm; Oil and grease free; Class 800; with shut-off device
| dimension | |
|---|---|
| Female thread | RP 3/8" |
| DN | 10 mm |
| Length | 67 mm |
| design | |
| Design | ATEX |
| pressure | |
| Pressure range | 0...138 bar |
