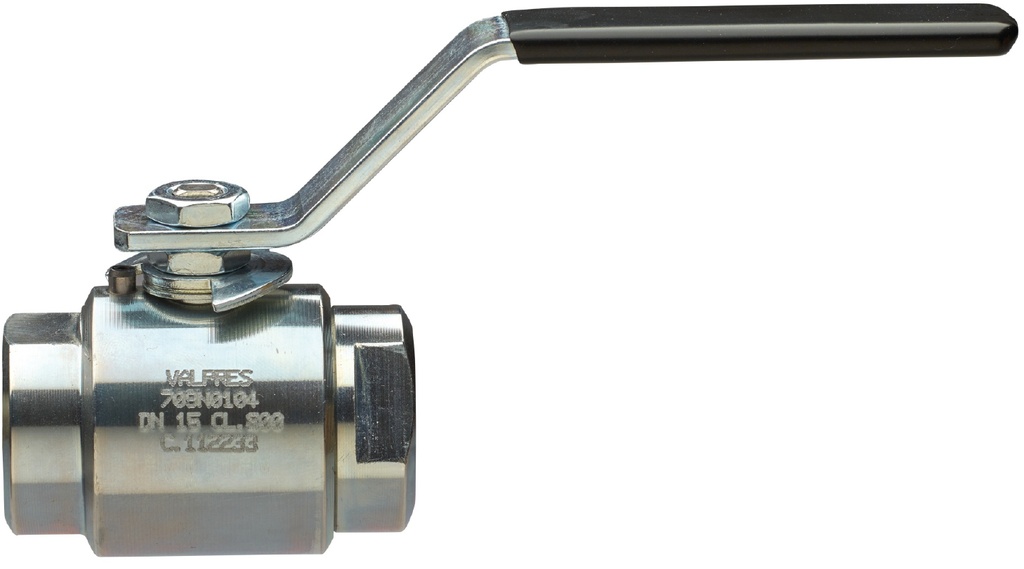

BA469-10-L-A3C-01
Ball valve made of stainless steel; ATEX II 2 G/D; Fire-safe; ANSI Class 800; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-Reinforced with carbographite; Stem seal double PTFE/FKM: Medium temperature -20...+160°C; Connection RP 1"; Nominal diameter 25mm; Pressure range 0...138bar; Length 105mm; Free of oil and grease; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
Country of origin: Italy
Weight: 2.0 Kg
Short Itemnumber:BA46910LA3C01
ball valve made of stainless steel; ATEX II 2 G/D; fire-safe; ANSI Class 800; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced with carbographite; stem seal double PTFE/FKM: medium temperature -20...+160°C; connection RP 1"; nominal diameter 25mm; pressure range 0...138bar; length 105mm; free of oil and grease; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
| Design | ATEX |
