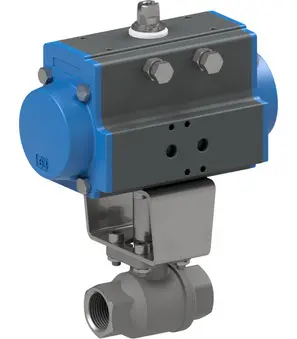

Ball valve with pneumatic actuator BA440-10-D0

Ball valve with pneumatic actuator BA440-10-D0

ball valve with pneumatic actuator series BA440; female thread; housing, ball AISI 316; seals PTFE/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0…64bar; length 93mm; actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.97 Kg
Short Itemnumber: BA44010D0
https://www.stasto.eu/web/image/product.template/172229/image_1920?unique=ca271a3

ball valve with pneumatic actuator series BA440; female thread; housing, ball AISI 316; seals PTFE/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0…64bar; length 93mm; actuator PAD063

483,20 € 483.2 EUR 483,20 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread RP 1"
DN 25 mm
Length 93 mm
Pressure range 0...64 bar
Female thread RP 1"
DN 25 mm
Length 93 mm
Ball valve made of stainless steel BA440-10-L
BA440-10-L x 1.0 Pcs
Ball valve made of stainless steel BA440-10-L
Ball valve made of stainless steel Series BA440; Full bore; Two-parts type; Female thread; Body, Ball 1.4408; Seals PTFE/EPDM; Medium temperature -20...+160°C; Connection RP 1"; Nominal diameter 25mm; Pressure range 0…105bar; Length 93mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3033 x 1.0 Pcs
RI3033
Mounting bracket; F05/F03-F04; Bolt 14-8
