BA415-12-T0

Name: BA415-12-T0
Brand: STASTO
SKU: BA415-12-T0
Price: 892.3 EUR
Availability: InStock

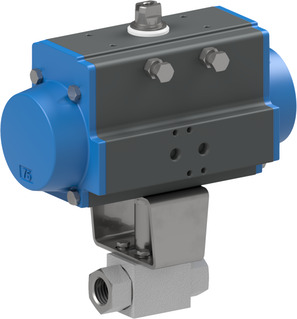

ball valve with pneumatic actuator series BA415; female thread; housing stainless steel; ball stainless steel; seals POM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm; actuator PAS1005; safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA41512T0

892,30 € 892.3 EUR 892,30 €

Female thread
- G 1/2"
DN
- 13 mm
Length
- 83 mm
Pressure range
- 0...500 bar
Actuator
- PAS1005

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	G 1/2"
DN	13 mm
Length	83 mm
pressure
Pressure range	0...500 bar
characteristics
Actuator	PAS1005

BA415-12-L x 1.0

BA415-12-L

high pressure ball valve series BA415; female thread; housing, ball AISI 316Ti/AISI 316L; seals POM/EPDM; medium temperature -30...+100°C; for liquids; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm

Add to Cart

PAS1005-B x 1.0

PAS1005-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

ATSV0703 x 1.0

ATSV0703

Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F03; Height 60mm

Add to Cart

IV/00088/13 x 1.0

IV/00088/13

Bolt; 1.4305; Diameter 20mm; Height of the bolt 55mm; Male square 14mm; Height of the male square 18mm; Female square 9mm; Height of the female square 9mm

Add to Cart
