STASTO Allgemeine Preisliste (EUR)
BA397-50-S0-A

BA397-50-S0-A

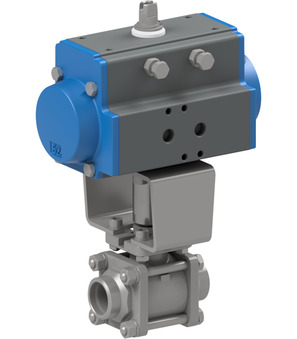

Ball valve with pneumatic actuator Series BA397-S-A; ATEX II 2 G/D c T3; Butt weld ends; Three-parts type; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Pressure range 0...25bar; Length 136mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.48 Kg
Short Itemnumber: BA39750S0A
https://www.stasto.eu/web/image/product.template/163215/image_1920?unique=145094f

ball valve with pneumatic actuator series BA397-S-A; ATEX II 2 G/D c T3; butt weld ends; three-parts type; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0...25bar; length 136mm; actuator PAS1005

1.186,30 € 1186.3 EUR 1.186,30 €

Not Available For Sale

excl. tax
  • Design
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25bar
Design ATEX
Brand STASTO
Pressure range 0...25bar
Design ATEX
Brand STASTO
Ball valve made of stainless steel BA397-50-L-A
BA397-50-L-A x 1.0 Pcs
Ball valve made of stainless steel BA397-50-L-A
Ball valve made of stainless steel Series BA397-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FFKM; Medium temperature -20...+160°C; Nominal diameter 50mm; Pressure range 0...25bar; Length 136mm
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
